Sprinkler Pipe

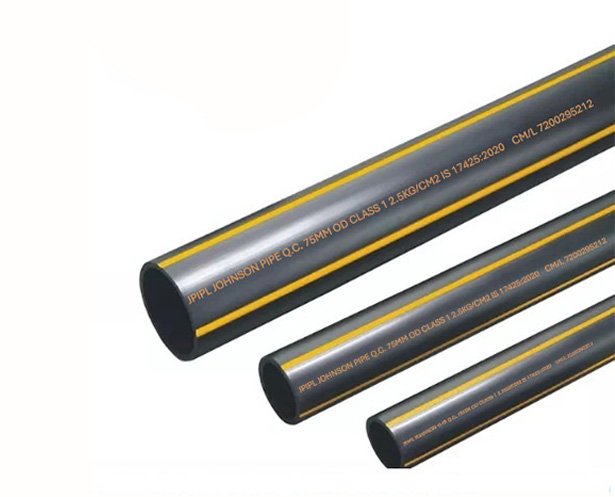

JOHNSON QUICK CONNECT HDPE SPRINKLER PIPE

Manufactured from virgin high-quality HDPE engineering plastics raw material
Suitable for all-weather installation or disassembly,even under extreme site conditions
Low installation cost with low frictional losses Long system life with excellent resistance to impact,chemicals,and salt in water
Standard length:6meters(custom lengths available on demand)Conforms to IS-14151/17425,IS-4984
Available in pressure rating of 2.5kg/cm² and 3.2kg/cm²

Outside Diameter	Minimum Pipe Wall Thickness (mm)
Outside Diameter	2.5	3.2	4.0	6.0	8.0	10.0
50	-	-	2.00	2.90	4.60	5.60
63	-	2.00	2.50	3.80	5.80	7.00
75	2.00	2.50	3.00	4.50	6.90	8.40
90	2.20	2.90	3.50	5.30	8.20	10.00
110	2.70	3.40	4.20	6.50	10.00	12.30
125	3.10	3.80	4.80	7.40	11.40	13.90
140	3.50	4.30	5.40	8.30	12.80	15.60
160	3.90	4.90	6.20	9.40	14.60	17.80
